Home (ESP-IDF)LVGL XML 绑定
文章

(ESP-IDF)LVGL XML 绑定

Posted recently Updated recently
By YCP
1~2 min read

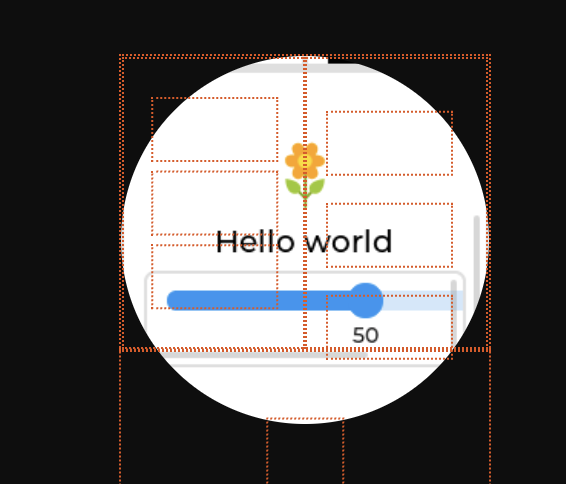

实现控件数值与显示数值的绑定

截屏2026-02-08 14.26.15.png

1、建立一个Component

<component>
	<api>
		<prop name="subject" type="subject" default="volume" />
	</api>

	<view width="100%" height="30%" flex_flow="column" style_flex_main_place="center" style_flex_cross_place="center">
		<lv_slider bind_value="$subject" />
		<lv_label bind_text="$subject" />
	</view>
</component>

2、globals 中添加 subject

    <int name="volume" value="50" />

3、view 中进行应用

    <slider_bind subject="volume" />

LVGL ESP
License:  CC BY 4.0
