（LVGL）案例预览 进度条

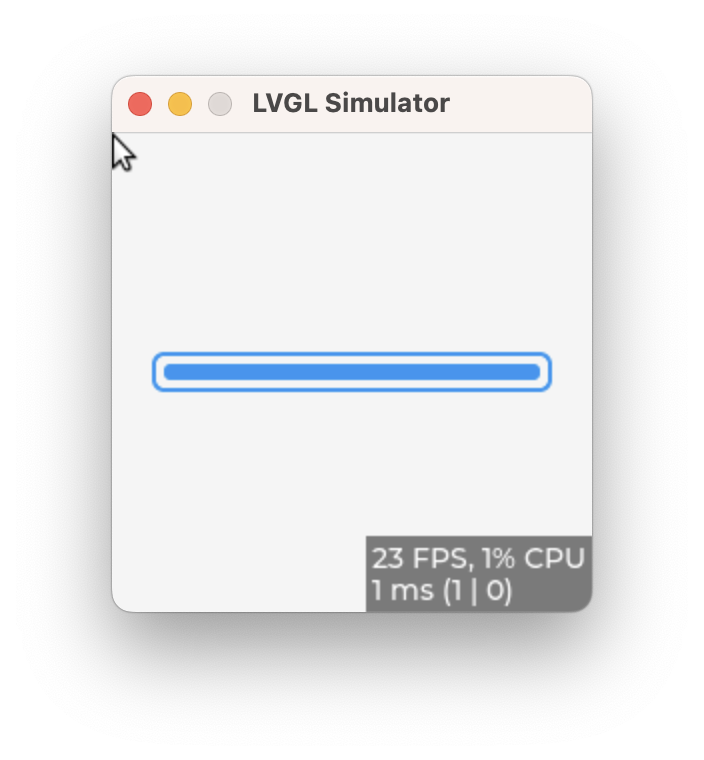

void lv_example_bar_2(void)
{
    static lv_style_t style_bg;
    static lv_style_t style_indic;

    lv_style_init(&style_bg);
    lv_style_set_border_color(&style_bg, lv_palette_main(LV_PALETTE_BLUE));
    lv_style_set_border_width(&style_bg, 2);
    lv_style_set_pad_all(&style_bg, 6); /*To make the indicator smaller*/
    lv_style_set_radius(&style_bg, 6);
    lv_style_set_anim_duration(&style_bg, 1000);

    lv_style_init(&style_indic);
    lv_style_set_bg_opa(&style_indic, LV_OPA_COVER);
    lv_style_set_bg_color(&style_indic, lv_palette_main(LV_PALETTE_BLUE));
    lv_style_set_radius(&style_indic, 3);

    lv_obj_t * bar = lv_bar_create(lv_screen_active());
    lv_obj_remove_style_all(bar);  /*To have a clean start*/
    lv_obj_add_style(bar, &style_bg, 0);
    lv_obj_add_style(bar, &style_indic, LV_PART_INDICATOR);

    lv_obj_set_size(bar, 200, 20);
    lv_obj_center(bar);
    lv_bar_set_value(bar, 100, LV_ANIM_ON);
}

#define MAX_VALUE 100
#define MIN_VALUE 0

static void set_value(void * bar, int32_t v)
{
    lv_bar_set_value((lv_obj_t *)bar, v, LV_ANIM_OFF);
}

static void event_cb(lv_event_t * e)
{
    lv_obj_t * obj = lv_event_get_target_obj(e);

    lv_draw_label_dsc_t label_dsc;
    lv_draw_label_dsc_init(&label_dsc);
    label_dsc.font = LV_FONT_DEFAULT;

    char buf[8];
    lv_snprintf(buf, sizeof(buf), "%d", (int)lv_bar_get_value(obj));

    lv_point_t txt_size;
    lv_text_get_size(&txt_size, buf, label_dsc.font, label_dsc.letter_space, label_dsc.line_space, LV_COORD_MAX,
                     label_dsc.flag);

    lv_area_t txt_area;
    txt_area.x1 = 0;
    txt_area.x2 = txt_size.x - 1;
    txt_area.y1 = 0;
    txt_area.y2 = txt_size.y - 1;

    lv_area_t indic_area;
    lv_obj_get_coords(obj, &indic_area);
    lv_area_set_width(&indic_area, lv_area_get_width(&indic_area) * lv_bar_get_value(obj) / MAX_VALUE);

    /*If the indicator is long enough put the text inside on the right*/
    if(lv_area_get_width(&indic_area) > txt_size.x + 20) {
        lv_area_align(&indic_area, &txt_area, LV_ALIGN_RIGHT_MID, -10, 0);
        label_dsc.color = lv_color_white();
    }
    /*If the indicator is still short put the text out of it on the right*/
    else {
        lv_area_align(&indic_area, &txt_area, LV_ALIGN_OUT_RIGHT_MID, 10, 0);
        label_dsc.color = lv_color_black();
    }
    label_dsc.text = buf;
    label_dsc.text_local = true;
    lv_layer_t * layer = lv_event_get_layer(e);
    lv_draw_label(layer, &label_dsc, &txt_area);
}

/**

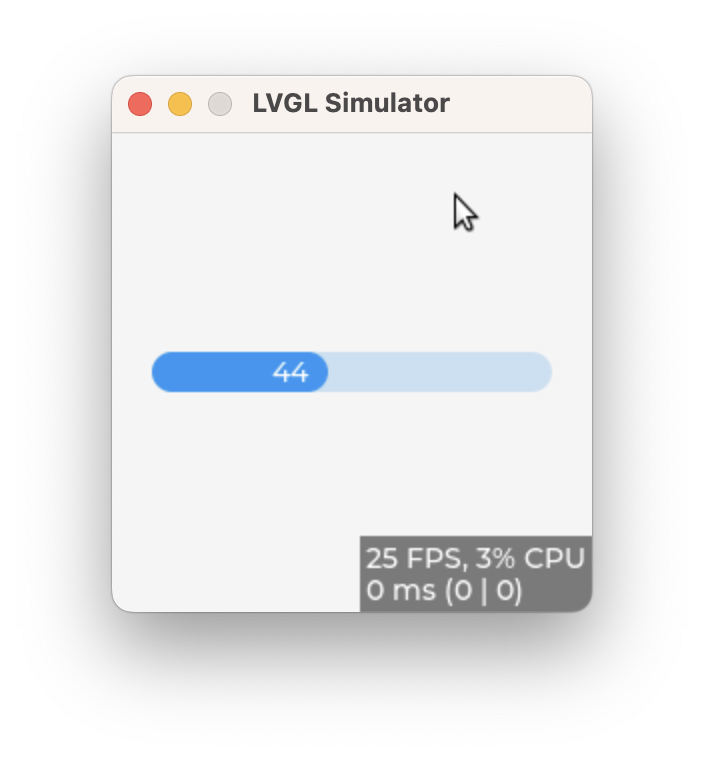

 * Custom drawer on the bar to display the current value
 */
void lv_example_bar_6(void)
{
    lv_obj_t * bar = lv_bar_create(lv_screen_active());
    lv_bar_set_range(bar, MIN_VALUE, MAX_VALUE);
    lv_obj_set_size(bar, 200, 20);
    lv_obj_center(bar);
    lv_obj_add_event_cb(bar, event_cb, LV_EVENT_DRAW_MAIN_END, NULL);

    lv_anim_t a;
    lv_anim_init(&a);
    lv_anim_set_var(&a, bar);
    lv_anim_set_values(&a, 0, 100);
    lv_anim_set_exec_cb(&a, set_value);
    lv_anim_set_duration(&a, 4000);
    lv_anim_set_reverse_duration(&a, 4000);
    lv_anim_set_repeat_count(&a, LV_ANIM_REPEAT_INFINITE);
    lv_anim_start(&a);

}
