（LVGL）案例预览 刻度

/**

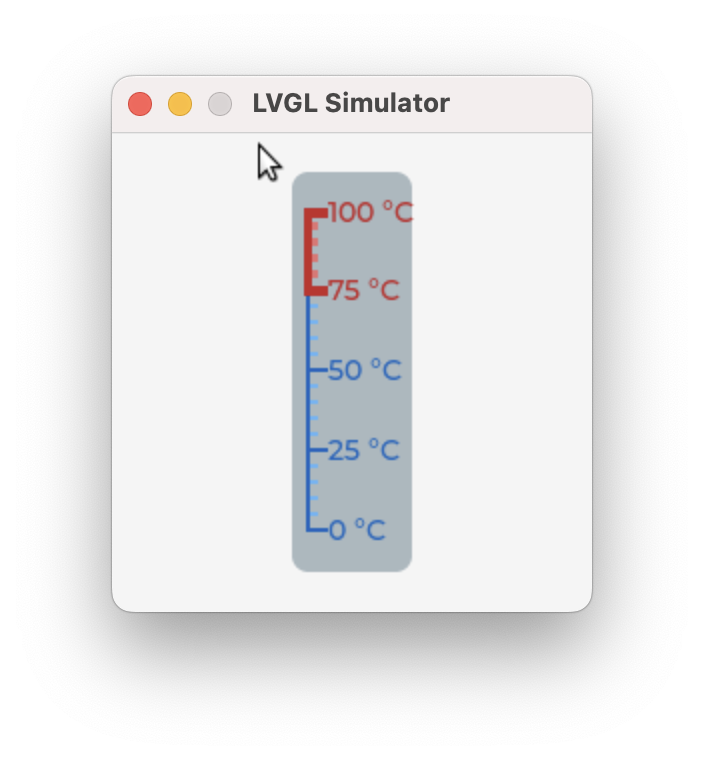

 * An vertical scale with section and custom styling
 */
void lv_example_scale_2(void)
{
    lv_obj_t * scale = lv_scale_create(lv_screen_active());
    lv_obj_set_size(scale, 60, 200);
    lv_scale_set_label_show(scale, true);
    lv_scale_set_mode(scale, LV_SCALE_MODE_VERTICAL_RIGHT);
    lv_obj_center(scale);

    lv_scale_set_total_tick_count(scale, 21);
    lv_scale_set_major_tick_every(scale, 5);

    lv_obj_set_style_length(scale, 10, LV_PART_INDICATOR);
    lv_obj_set_style_length(scale, 5, LV_PART_ITEMS);
    lv_scale_set_range(scale, 0, 100);

    static const char * custom_labels[] = {"0 °C", "25 °C", "50 °C", "75 °C", "100 °C", NULL};
    lv_scale_set_text_src(scale, custom_labels);

    static lv_style_t indicator_style;
    lv_style_init(&indicator_style);

    /* Label style properties */
    lv_style_set_text_font(&indicator_style, LV_FONT_DEFAULT);
    lv_style_set_text_color(&indicator_style, lv_palette_darken(LV_PALETTE_BLUE, 3));

    /* Major tick properties */
    lv_style_set_line_color(&indicator_style, lv_palette_darken(LV_PALETTE_BLUE, 3));
    lv_style_set_width(&indicator_style, 10U);      /*Tick length*/
    lv_style_set_line_width(&indicator_style, 2U);  /*Tick width*/
    lv_obj_add_style(scale, &indicator_style, LV_PART_INDICATOR);

    static lv_style_t minor_ticks_style;
    lv_style_init(&minor_ticks_style);
    lv_style_set_line_color(&minor_ticks_style, lv_palette_lighten(LV_PALETTE_BLUE, 2));
    lv_style_set_width(&minor_ticks_style, 5U);         /*Tick length*/
    lv_style_set_line_width(&minor_ticks_style, 2U);    /*Tick width*/
    lv_obj_add_style(scale, &minor_ticks_style, LV_PART_ITEMS);

    static lv_style_t main_line_style;
    lv_style_init(&main_line_style);
    /* Main line properties */
    lv_style_set_line_color(&main_line_style, lv_palette_darken(LV_PALETTE_BLUE, 3));
    lv_style_set_line_width(&main_line_style, 2U); // Tick width
    lv_obj_add_style(scale, &main_line_style, LV_PART_MAIN);

    /* Add a section */
    static lv_style_t section_minor_tick_style;
    static lv_style_t section_label_style;
    static lv_style_t section_main_line_style;

    lv_style_init(&section_label_style);
    lv_style_init(&section_minor_tick_style);
    lv_style_init(&section_main_line_style);

    /* Label style properties */
    lv_style_set_text_font(&section_label_style, LV_FONT_DEFAULT);
    lv_style_set_text_color(&section_label_style, lv_palette_darken(LV_PALETTE_RED, 3));

    lv_style_set_line_color(&section_label_style, lv_palette_darken(LV_PALETTE_RED, 3));
    lv_style_set_line_width(&section_label_style, 5U); /*Tick width*/

    lv_style_set_line_color(&section_minor_tick_style, lv_palette_lighten(LV_PALETTE_RED, 2));
    lv_style_set_line_width(&section_minor_tick_style, 4U); /*Tick width*/

    /* Main line properties */
    lv_style_set_line_color(&section_main_line_style, lv_palette_darken(LV_PALETTE_RED, 3));
    lv_style_set_line_width(&section_main_line_style, 4U); /*Tick width*/

    /* Configure section styles */
    lv_scale_section_t * section = lv_scale_add_section(scale);
    lv_scale_set_section_range(scale, section, 75, 100);
    lv_scale_set_section_style_indicator(scale, section, &section_label_style);
    lv_scale_set_section_style_items(scale, section, &section_minor_tick_style);
    lv_scale_set_section_style_main(scale, section, &section_main_line_style);


    lv_obj_set_style_bg_color(scale, lv_palette_main(LV_PALETTE_BLUE_GREY), 0);
    lv_obj_set_style_bg_opa(scale, LV_OPA_50, 0);
    lv_obj_set_style_pad_left(scale, 8, 0);
    lv_obj_set_style_radius(scale, 8, 0);
    lv_obj_set_style_pad_ver(scale, 20, 0);
}

static int32_t hr_value = 98;
static int8_t hr_step = 1;
static lv_obj_t * needle_line = NULL;
static lv_obj_t * hr_value_label = NULL;
static lv_obj_t * bpm_label = NULL;
static lv_obj_t * scale = NULL;

typedef struct {
    lv_style_t items;
    lv_style_t indicator;
    lv_style_t main;
} section_styles_t;

static section_styles_t zone1_styles;
static section_styles_t zone2_styles;
static section_styles_t zone3_styles;
static section_styles_t zone4_styles;
static section_styles_t zone5_styles;

static lv_color_t get_hr_zone_color(int32_t hr)
{
    if(hr < 117) return lv_palette_main(LV_PALETTE_GREY); /* Zone 1 */
    else if(hr < 135) return lv_palette_main(LV_PALETTE_BLUE); /* Zone 2 */
    else if(hr < 158) return lv_palette_main(LV_PALETTE_GREEN); /* Zone 3 */
    else if(hr < 176) return lv_palette_main(LV_PALETTE_ORANGE); /* Zone 4 */
    else return lv_palette_main(LV_PALETTE_RED); /* Zone 5 */
}

static void hr_anim_timer_cb(lv_timer_t * timer)
{
    LV_UNUSED(timer);

    hr_value += hr_step;

    if(hr_value >= 195) {
        hr_value = 195;
        hr_step = -1;
    }
    else if(hr_value <= 98) {
        hr_value = 98;
        hr_step = 1;
    }

    /* Update needle */
    lv_scale_set_line_needle_value(scale, needle_line, -8, hr_value);

    /* Update HR text */
    lv_label_set_text_fmt(hr_value_label, "%d", hr_value);

    /* Update text color based on zone */
    lv_color_t zone_color = get_hr_zone_color(hr_value);
    lv_obj_set_style_text_color(hr_value_label, zone_color, 0);
    lv_obj_set_style_text_color(bpm_label, zone_color, 0);
}

static void init_section_styles(section_styles_t * styles, lv_color_t color)
{
    lv_style_init(&styles->items);
    lv_style_set_line_color(&styles->items, color);
    lv_style_set_line_width(&styles->items, 0);

    lv_style_init(&styles->indicator);
    lv_style_set_line_color(&styles->indicator, color);
    lv_style_set_line_width(&styles->indicator, 0);

    lv_style_init(&styles->main);
    lv_style_set_arc_color(&styles->main, color);
    lv_style_set_arc_width(&styles->main, 20);
}

static void add_section(lv_obj_t * target_scale,
                        int32_t from,
                        int32_t to,
                        const section_styles_t * styles)
{
    lv_scale_section_t * sec = lv_scale_add_section(target_scale);
    lv_scale_set_section_range(target_scale, sec, from, to);
    lv_scale_set_section_style_items(target_scale, sec, &styles->items);
    lv_scale_set_section_style_indicator(target_scale, sec, &styles->indicator);
    lv_scale_set_section_style_main(target_scale, sec, &styles->main);
}

void lv_example_scale_10(void)
{
    scale = lv_scale_create(lv_screen_active());
    lv_obj_center(scale);
    lv_obj_set_size(scale, 200, 200);

    lv_scale_set_mode(scale, LV_SCALE_MODE_ROUND_INNER);
    lv_scale_set_range(scale, 98, 195);
    lv_scale_set_total_tick_count(scale, 15);
    lv_scale_set_major_tick_every(scale, 3);
    lv_scale_set_angle_range(scale, 280);
    lv_scale_set_rotation(scale, 130);
    lv_scale_set_label_show(scale, false);

    lv_obj_set_style_length(scale, 6, LV_PART_ITEMS);
    lv_obj_set_style_length(scale, 10, LV_PART_INDICATOR);
    lv_obj_set_style_arc_width(scale, 0, LV_PART_MAIN);

    /* Zone 1: (Grey) */
    init_section_styles(&zone1_styles, lv_palette_main(LV_PALETTE_GREY));
    add_section(scale, 98, 117, &zone1_styles);

    /* Zone 2: (Blue) */
    init_section_styles(&zone2_styles, lv_palette_main(LV_PALETTE_BLUE));
    add_section(scale, 117, 135, &zone2_styles);

    /* Zone 3: (Green) */
    init_section_styles(&zone3_styles, lv_palette_main(LV_PALETTE_GREEN));
    add_section(scale, 135, 158, &zone3_styles);

    /* Zone 4: (Orange) */
    init_section_styles(&zone4_styles, lv_palette_main(LV_PALETTE_ORANGE));
    add_section(scale, 158, 176, &zone4_styles);

    /* Zone 5: (Red) */
    init_section_styles(&zone5_styles, lv_palette_main(LV_PALETTE_RED));
    add_section(scale, 176, 195, &zone5_styles);

    needle_line = lv_line_create(scale);

    /* Optional styling */
    lv_obj_set_style_line_color(needle_line, lv_color_black(), LV_PART_MAIN);
    lv_obj_set_style_line_width(needle_line, 12, LV_PART_MAIN);
    lv_obj_set_style_length(needle_line, 20, LV_PART_MAIN);
    lv_obj_set_style_line_rounded(needle_line, false, LV_PART_MAIN);
    lv_obj_set_style_pad_right(needle_line, 50, LV_PART_MAIN);

    int32_t current_hr = 145;

    lv_scale_set_line_needle_value(scale, needle_line, 0, current_hr);

    lv_obj_t * circle = lv_obj_create(lv_screen_active());
    lv_obj_set_size(circle, 130, 130);
    lv_obj_center(circle);

    lv_obj_set_style_radius(circle, LV_RADIUS_CIRCLE, 0);

    lv_obj_set_style_bg_color(circle, lv_obj_get_style_bg_color(lv_screen_active(), LV_PART_MAIN), 0);
    lv_obj_set_style_bg_opa(circle, LV_OPA_COVER, 0);
    lv_obj_set_style_border_width(circle, 0, LV_PART_MAIN);

    lv_obj_t * hr_container = lv_obj_create(circle);
    lv_obj_center(hr_container);
    lv_obj_set_size(hr_container, lv_pct(100), LV_SIZE_CONTENT);
    lv_obj_set_style_bg_opa(hr_container, LV_OPA_TRANSP, 0);
    lv_obj_set_style_border_width(hr_container, 0, 0);
    lv_obj_set_layout(hr_container, LV_LAYOUT_FLEX);
    lv_obj_set_flex_flow(hr_container, LV_FLEX_FLOW_COLUMN);
    lv_obj_set_style_pad_all(hr_container, 0, LV_PART_MAIN);
    lv_obj_set_style_pad_row(hr_container, 0, 0);
    lv_obj_set_flex_align(hr_container, LV_FLEX_ALIGN_CENTER, LV_FLEX_ALIGN_CENTER, LV_FLEX_ALIGN_CENTER);

    hr_value_label = lv_label_create(hr_container);
    lv_label_set_text_fmt(hr_value_label, "%d", current_hr);
    lv_obj_set_style_text_font(hr_value_label, &lv_font_montserrat_40, 0);
    lv_obj_set_style_text_align(hr_value_label, LV_TEXT_ALIGN_CENTER, 0);

    bpm_label = lv_label_create(hr_container);
    lv_label_set_text(bpm_label, "bpm");
    lv_obj_set_style_text_font(bpm_label, &lv_font_montserrat_18, 0);
    lv_obj_set_style_text_align(bpm_label, LV_TEXT_ALIGN_CENTER, 0);

    lv_color_t zone_color = get_hr_zone_color(current_hr);
    lv_obj_set_style_text_color(hr_value_label, zone_color, 0);
    lv_obj_set_style_text_color(bpm_label, zone_color, 0);

    lv_timer_create(hr_anim_timer_cb, 80, NULL);
}

static void label_color_cb(lv_event_t * e)
{
    lv_draw_task_t * draw_task = lv_event_get_draw_task(e);
    if(!draw_task) return;

    lv_draw_dsc_base_t * base_dsc = (lv_draw_dsc_base_t *)lv_draw_task_get_draw_dsc(draw_task);
    if(!base_dsc || base_dsc->part != LV_PART_INDICATOR) return;

    lv_draw_label_dsc_t * label_dsc = lv_draw_task_get_label_dsc(draw_task);
    if(!label_dsc || !label_dsc->text) return;

    const char * txt = label_dsc->text;

    if(lv_strcmp(txt, "06") == 0 || lv_strcmp(txt, "12") == 0 ||
       lv_strcmp(txt, "18") == 0 || lv_strcmp(txt, "24") == 0) {
        label_dsc->color = lv_color_white();
    }
    else {
        label_dsc->color = lv_palette_darken(LV_PALETTE_GREY, 1);
    }
}

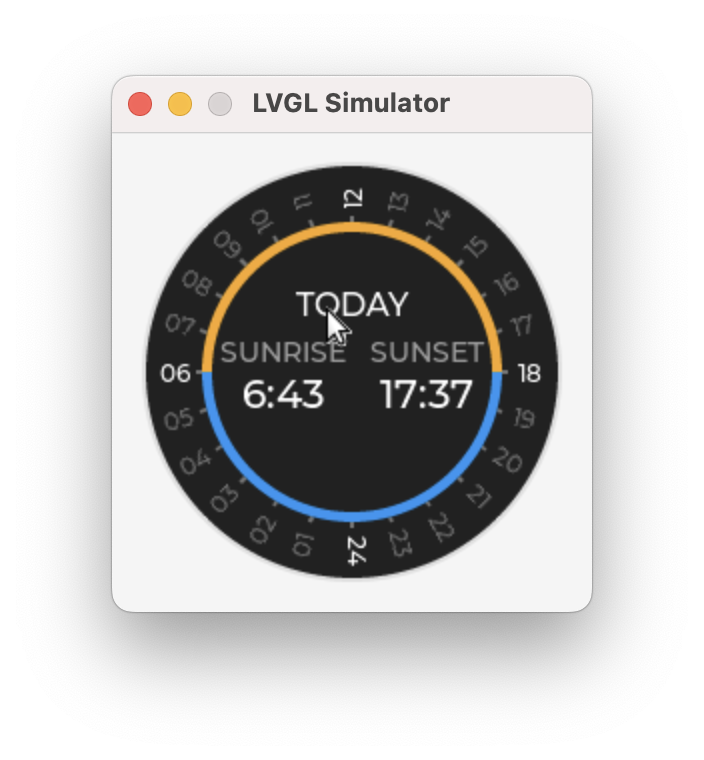

void lv_example_scale_11(void)
{
    lv_obj_t * bg = lv_obj_create(lv_screen_active());
    lv_obj_set_size(bg, 210, 210);
    lv_obj_center(bg);
    lv_obj_set_style_radius(bg, LV_RADIUS_CIRCLE, 0);
    lv_obj_set_style_bg_color(bg, lv_palette_darken(LV_PALETTE_GREY, 4), 0);
    lv_obj_set_style_bg_opa(bg, LV_OPA_COVER, 0);
    lv_obj_remove_flag(bg, LV_OBJ_FLAG_SCROLLABLE);
    lv_obj_set_style_pad_all(bg, 0, LV_PART_MAIN);

    lv_obj_t * scale = lv_scale_create(bg);
    lv_obj_center(scale);
    lv_obj_set_size(scale, 150, 150);
    lv_obj_set_style_arc_width(scale, 5, LV_PART_MAIN);

    lv_scale_set_mode(scale, LV_SCALE_MODE_ROUND_OUTER);
    lv_scale_set_range(scale, 0, 24);
    lv_scale_set_total_tick_count(scale, 25);
    lv_scale_set_major_tick_every(scale, 1);
    lv_scale_set_angle_range(scale, 360);
    lv_scale_set_rotation(scale, 105);
    lv_scale_set_label_show(scale, true);
    lv_obj_set_style_text_font(scale, &lv_font_montserrat_12, LV_PART_INDICATOR);
    lv_obj_set_style_pad_radial(scale, -6, LV_PART_INDICATOR);

    /*Rotate the labels of the ticks*/
    lv_obj_set_style_transform_rotation(scale, LV_SCALE_LABEL_ROTATE_MATCH_TICKS | LV_SCALE_LABEL_ROTATE_KEEP_UPRIGHT,
                                        LV_PART_INDICATOR);

    /* Style for major ticks */
    static lv_style_t style_ticks;
    lv_style_init(&style_ticks);
    lv_style_set_line_color(&style_ticks, lv_palette_darken(LV_PALETTE_GREY, 1));
    lv_style_set_line_width(&style_ticks, 2);
    lv_style_set_width(&style_ticks, 10);
    lv_obj_add_style(scale, &style_ticks, LV_PART_INDICATOR);

    /* Style for NIGHT — blue */
    static lv_style_t style_night;
    lv_style_init(&style_night);
    lv_style_set_arc_color(&style_night, lv_palette_main(LV_PALETTE_BLUE));

    /* Style for DAY — dark yellow */
    static lv_style_t style_day;
    lv_style_init(&style_day);
    lv_style_set_arc_color(&style_day, lv_palette_darken(LV_PALETTE_YELLOW, 3));

    /* NIGHT section */
    lv_scale_section_t * section_night1 = lv_scale_add_section(scale);
    lv_scale_set_section_range(scale, section_night1, 17, 5);
    lv_scale_set_section_style_main(scale, section_night1, &style_night);

    /* DAY section */
    lv_scale_section_t * section_day = lv_scale_add_section(scale);
    lv_scale_set_section_range(scale, section_day, 5, 17);
    lv_scale_set_section_style_main(scale, section_day, &style_day);


    static const char * hour_labels[] = {
        "01", "02", "03", "04", "05",
        "06", "07", "08", "09", "10",
        "11", "12", "13", "14", "15",
        "16", "17", "18", "19", "20",
        "21", "22", "23", "24",
        NULL
    };
    lv_scale_set_text_src(scale, hour_labels);

    lv_obj_add_flag(scale, LV_OBJ_FLAG_SEND_DRAW_TASK_EVENTS);
    lv_obj_add_event_cb(scale, label_color_cb, LV_EVENT_DRAW_TASK_ADDED, NULL);

    lv_obj_t * today = lv_label_create(bg);
    lv_label_set_text(today, "TODAY");
    lv_obj_set_style_text_font(today, &lv_font_montserrat_16, 0);
    lv_obj_set_style_text_color(today, lv_color_white(), 0);
    lv_obj_align(today, LV_ALIGN_TOP_MID, 0, 60);

    lv_obj_t * sunrise_lbl = lv_label_create(bg);
    lv_label_set_text(sunrise_lbl, "SUNRISE");
    lv_obj_set_style_text_font(sunrise_lbl, &lv_font_montserrat_14, 0);
    lv_obj_set_style_text_color(sunrise_lbl, lv_palette_main(LV_PALETTE_GREY), 0);
    lv_obj_align(sunrise_lbl, LV_ALIGN_LEFT_MID, 37, -10);

    lv_obj_t * sunrise_time = lv_label_create(bg);
    lv_label_set_text(sunrise_time, "6:43");
    lv_obj_set_style_text_font(sunrise_time, &lv_font_montserrat_20, 0);
    lv_obj_set_style_text_color(sunrise_time, lv_color_white(), 0);
    lv_obj_align_to(sunrise_time, sunrise_lbl, LV_ALIGN_OUT_BOTTOM_MID, 0, 2);

    lv_obj_t * sunset_lbl = lv_label_create(bg);
    lv_label_set_text(sunset_lbl, "SUNSET");
    lv_obj_set_style_text_font(sunset_lbl, &lv_font_montserrat_14, 0);
    lv_obj_set_style_text_color(sunset_lbl, lv_palette_main(LV_PALETTE_GREY), 0);
    lv_obj_align(sunset_lbl, LV_ALIGN_RIGHT_MID, -37, -10);

    lv_obj_t * sunset_time = lv_label_create(bg);
    lv_label_set_text(sunset_time, "17:37");
    lv_obj_set_style_text_font(sunset_time, &lv_font_montserrat_20, 0);
    lv_obj_set_style_text_color(sunset_time, lv_color_white(), 0);
    lv_obj_align_to(sunset_time, sunset_lbl, LV_ALIGN_OUT_BOTTOM_MID, 0, 2);
}

static lv_obj_t * scale;
static lv_obj_t * label;

static const char * heading_to_cardinal(int32_t heading)
{
    /* Normalize heading to range [0, 360) */
    while(heading < 0) heading += 360;
    while(heading >= 360) heading -= 360;

    if(heading < 23) return "N";
    else if(heading < 68) return "NE";
    else if(heading < 113) return "E";
    else if(heading < 158) return "SE";
    else if(heading < 203) return "S";
    else if(heading < 248) return "SW";
    else if(heading < 293) return "W";
    else if(heading < 338) return "NW";

    return "N";
}

static void set_heading_value(void * obj, int32_t v)
{
    LV_UNUSED(obj);
    lv_scale_set_rotation(scale, 270 - v);
    lv_label_set_text_fmt(label, "%d°\n%s", (int)v, heading_to_cardinal(v));
}

static void draw_event_cb(lv_event_t * e)
{
    lv_draw_task_t * draw_task = lv_event_get_draw_task(e);
    lv_draw_dsc_base_t * base_dsc = (lv_draw_dsc_base_t *)lv_draw_task_get_draw_dsc(draw_task);
    lv_draw_label_dsc_t * label_draw_dsc = lv_draw_task_get_label_dsc(draw_task);
    lv_draw_line_dsc_t * line_draw_dsc = lv_draw_task_get_line_dsc(draw_task);
    if(base_dsc->part == LV_PART_INDICATOR) {
        if(label_draw_dsc) {
            if(base_dsc->id1 == 0) {
                label_draw_dsc->color = lv_palette_main(LV_PALETTE_RED);
            }
        }
        if(line_draw_dsc) {
            if(base_dsc->id1 == 60) {
                line_draw_dsc->color = lv_palette_main(LV_PALETTE_RED);
            }
        }
    }
}

/**

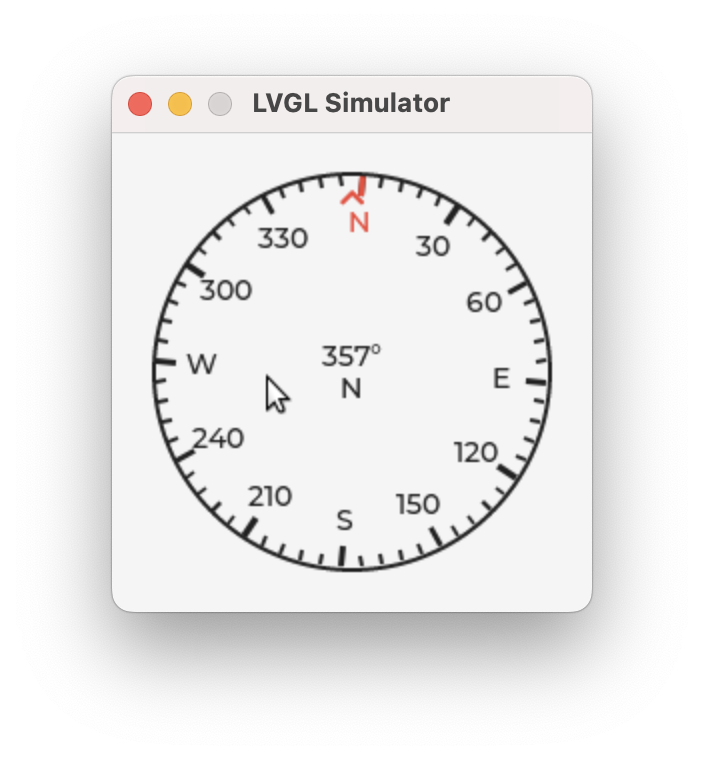

 * A round scale style simulating a compass
 */
void lv_example_scale_12(void)
{
    scale = lv_scale_create(lv_screen_active());

    lv_obj_set_size(scale, 200, 200);
    lv_scale_set_mode(scale, LV_SCALE_MODE_ROUND_INNER);
    lv_obj_set_align(scale, LV_ALIGN_CENTER);

    lv_scale_set_total_tick_count(scale, 61);
    lv_scale_set_major_tick_every(scale, 5);

    lv_obj_set_style_length(scale, 5, LV_PART_ITEMS);
    lv_obj_set_style_length(scale, 10, LV_PART_INDICATOR);
    lv_obj_set_style_line_width(scale, 3, LV_PART_INDICATOR);
    lv_scale_set_range(scale, 0, 360);

    static const char * custom_labels[] = {"N", "30", "60", "E", "120", "150", "S", "210", "240", "W", "300", "330", NULL};
    lv_scale_set_text_src(scale, custom_labels);

    lv_scale_set_angle_range(scale, 360);
    lv_scale_set_rotation(scale, 270);

    lv_obj_add_event_cb(scale, draw_event_cb, LV_EVENT_DRAW_TASK_ADDED, NULL);
    lv_obj_add_flag(scale, LV_OBJ_FLAG_SEND_DRAW_TASK_EVENTS);

    label = lv_label_create(lv_screen_active());
    lv_obj_set_width(label, 100);
    lv_obj_set_align(label, LV_ALIGN_CENTER);
    lv_label_set_text(label, "0°\nN");
    lv_obj_set_style_text_align(label, LV_TEXT_ALIGN_CENTER, 0);

    set_heading_value(NULL, 0);

    lv_obj_t * symbol = lv_label_create(scale);
    lv_obj_set_align(symbol, LV_ALIGN_TOP_MID);
    lv_obj_set_y(symbol, 5);
    lv_label_set_text(symbol, LV_SYMBOL_UP);
    lv_obj_set_style_text_align(symbol, LV_TEXT_ALIGN_CENTER, 0);
    lv_obj_set_style_text_color(symbol, lv_palette_main(LV_PALETTE_RED), 0);

    lv_anim_t anim_scale;
    lv_anim_init(&anim_scale);
    lv_anim_set_var(&anim_scale, scale);
    lv_anim_set_exec_cb(&anim_scale, set_heading_value);
    lv_anim_set_duration(&anim_scale, 5000);
    lv_anim_set_repeat_delay(&anim_scale, 500);
    lv_anim_set_repeat_count(&anim_scale, LV_ANIM_REPEAT_INFINITE);
    lv_anim_set_reverse_duration(&anim_scale, 5000);
    lv_anim_set_reverse_delay(&anim_scale, 500);
    lv_anim_set_values(&anim_scale, 0, 360);
    lv_anim_start(&anim_scale);

}
